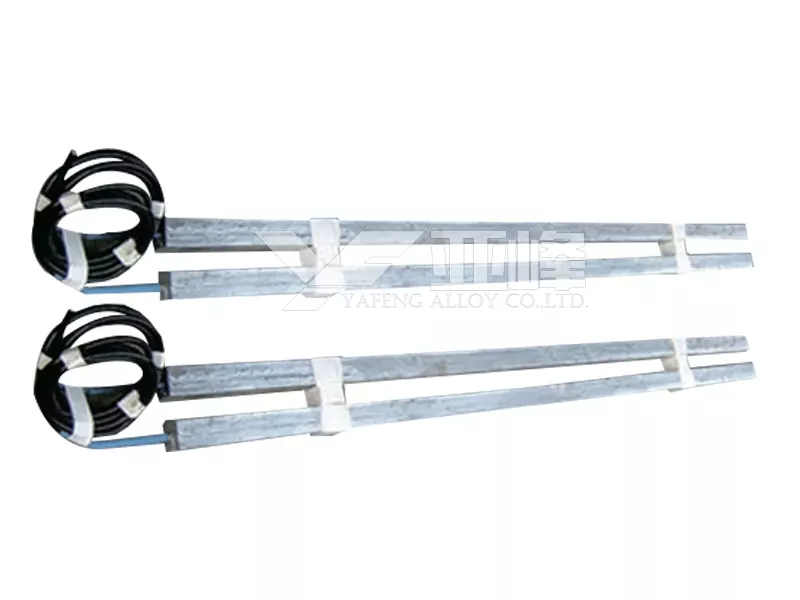

Double-zinc grounding battery

Brand: Yafeng

MOQ: 20 Pieces

Delivery time: 7 Day

Within the range of electromagnetic interference and in lightning-prone areas,

prevent damage caused by strong electrical surges,

without damaging the protected structures.

Previous: Zinc Alloy Sacrificial Anode

Next: Sacrificial Anodes Commonly Used in Hulls

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Country

Message *

Products

Magnesium alloy sacrificial anode series

Aluminum alloy sacrificial anode series

Zinc alloy sacrificial anode series

External current protection series

Cathodic protection detection series

Cathodic protection supporting series

Lightning protection device series

product

Custom-Shaped Magnesium Alloy Sacrificial Anodes

High-potential magnesium alloy sacrificial anode

Magnesium Alloy Sacrificial Anode

Sacrificial Anodes for Casing

Latest News

Combined application of wind-erosion-resistant strip anodes and intelligent test piles

How to Optimize Strip Anode Lifespan Through Potential Monitoring

The Impact of Strip Anode Material Selection on Test Pile Maintenance Frequency

How Test Pile Data Collection Optimizes Strip Anode Lifespan

The Impact of New Materials on Test Pile Monitoring Accuracy

Chemical Element	AI	Cd	Impurity elements				Zn
Chemical Element	AI	Cd	Fe	Cu	Pb	Si	Zn
Content	0.3–0.6	0.05-0.12	≤0.005	≤0.005	≤0.006	≤0.0125	Residual

Electrochemical Properties	Open-circuit voltage/V	Operating Potential N	Actual Capacity (Ah/kg)	Current Efficiency %	Consumption Efficiency kg(A·a)	Dissolution Condition
In seawater (1 mA/cm²)	-1.09 to -1.05	-1.056 to -1.00	≥780	≥95	≤11.23	Surface dissolution is uniform, and corrosion products are easily detached.
In soil (0.03 mA/cm²)	≤ -1.05	≤ -1.03	≥530	≥65	≤17.25

Model	Specifications/mm Length x Width x Width (Diameter x Height)
ZJD-1	Φ 1000x40x40
ZJD-2	Φ 1500x40x40
ZJD-3	Φ 40x1000
ZJD-4	Φ 40x1500
ZJD-5	Φ 60x2000

Double-zinc grounding battery

Executive standard

Chemical composition

Main performance

Specification and model
