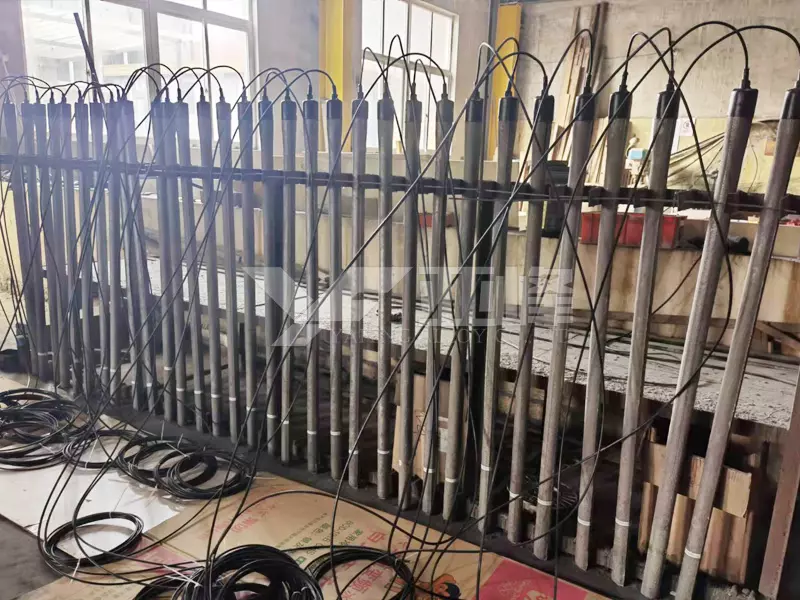

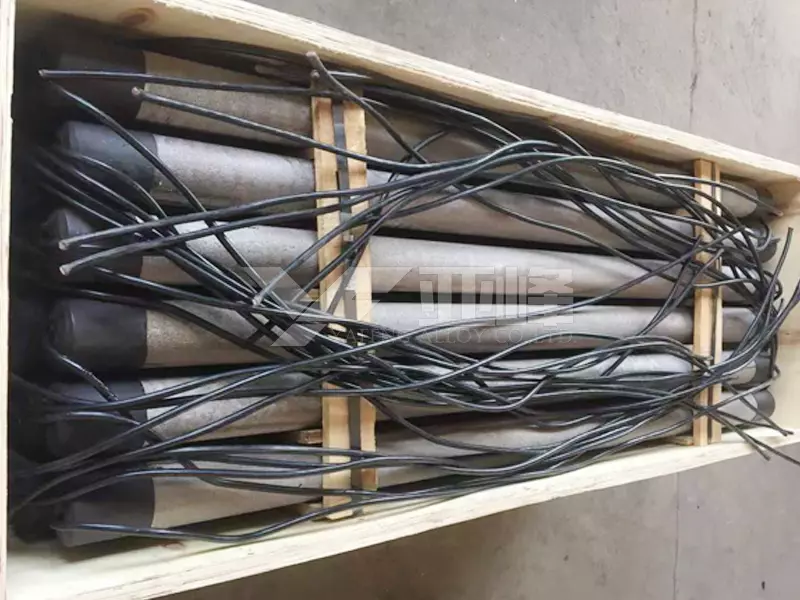

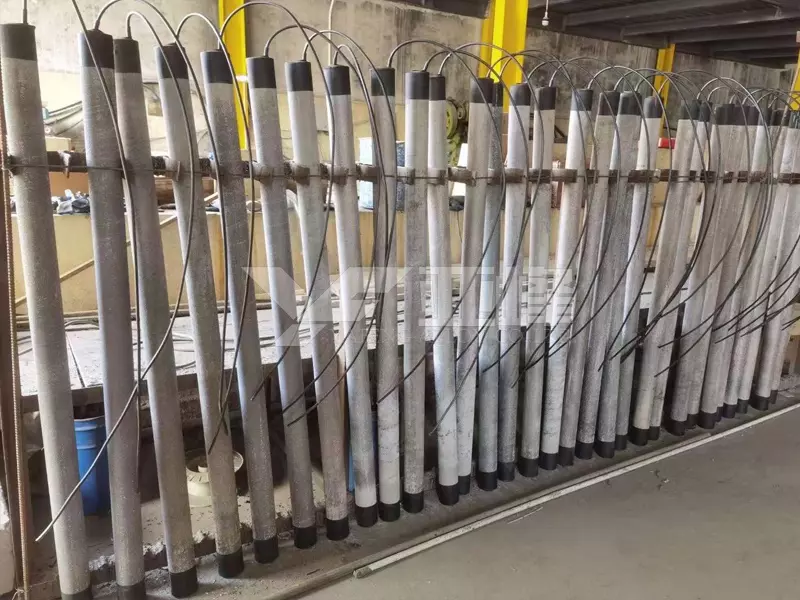

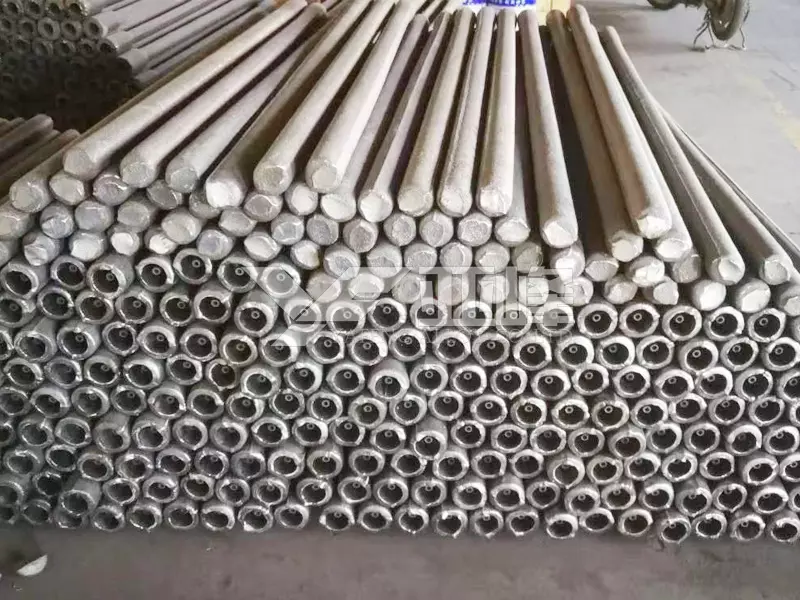

High-Silicon Cast Iron Anodes

Brand: Yafeng

MOQ: 20 Pieces

Delivery time: 7 Day

Low consumption rate, allowing high current density;

Low ground resistance, stable potential, high utilization rate.

Previous: Deep-well Anode for Precious Metal Oxides

Next: Precious Metal Oxide Anodes

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Country

Message *

Products

Magnesium alloy sacrificial anode series

Aluminum alloy sacrificial anode series

Zinc alloy sacrificial anode series

External current protection series

Cathodic protection detection series

Cathodic protection supporting series

Lightning protection device series

product

Custom-Shaped Magnesium Alloy Sacrificial Anodes

High-potential magnesium alloy sacrificial anode

Magnesium Alloy Sacrificial Anode

Sacrificial Anodes for Casing

Latest News

Combined application of wind-erosion-resistant strip anodes and intelligent test piles

How to Optimize Strip Anode Lifespan Through Potential Monitoring

The Impact of Strip Anode Material Selection on Test Pile Maintenance Frequency

How Test Pile Data Collection Optimizes Strip Anode Lifespan

The Impact of New Materials on Test Pile Monitoring Accuracy

Type	Chemical Elements (%)					Impurity Content (%)
Type	Si	Cr	Mn	C	Fe	P	S
Standard High-Silicon Cast Iron Anodes	14-16	------	0.6-0.8	0.8-1.05	Allowance	≤0.25	≤0.1
Chromium-Containing High-Silicon Ferro-Silicon Anodes	14-16	4.0-4.5	0.6-0.8	0.8-1.05	Allowance	≤0.25	≤0.1

Material	Operating Environment	Working Current Density (A/m²)	Consumption rate (kg/acre·year)
High-silicon cast iron	In seawater	50	0.3–1.0
High-silicon cast iron	In freshwater and soil	10	0.05–0.2

Model	Specifications /mm	Weight /kg	Anode with attached cable
Model	Specifications /mm	Weight /kg	Cross-section /m²	Length /mm
YGT-Ⅰ	Φ50x1500	22	25	1000
YGT-Ⅱ	Φ75x1200	40	25	1000
YGT-Ⅲ	Φ75x1500	50	25	1000
YGT-Ⅳ	Φ100x1500	90	25	1000

High-Silicon Cast Iron Anodes

Executive standard

Main performance

Chemical composition

Products Description
