Precious metal oxide anodes represent a novel anode type featuring a titanium-based substrate coated with precious metal oxides such as iridium and platinum.

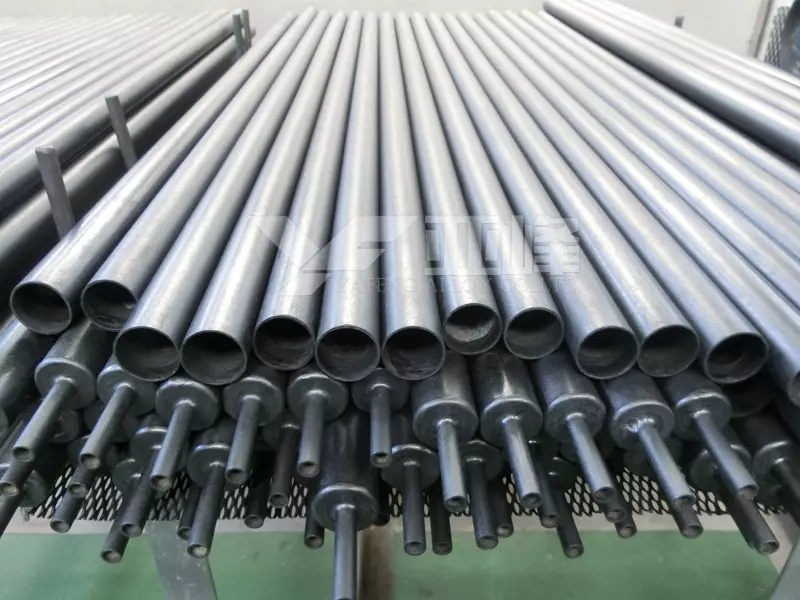

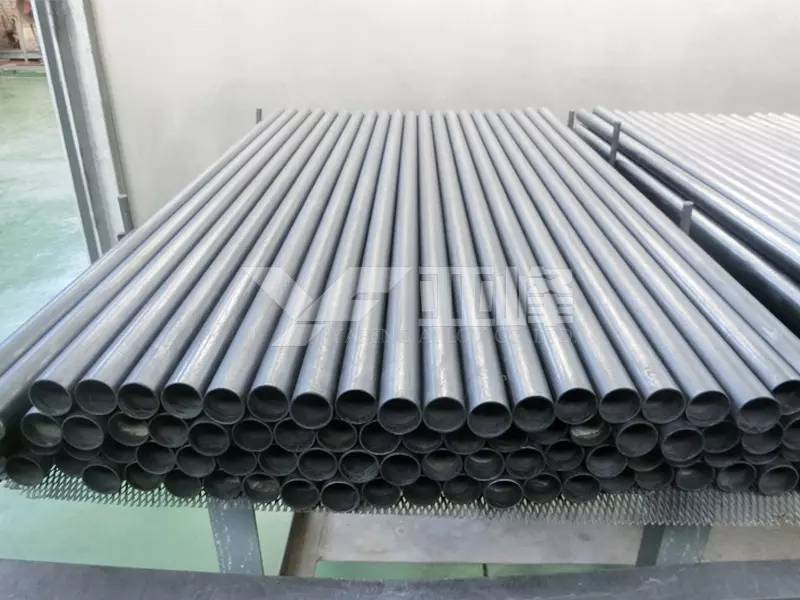

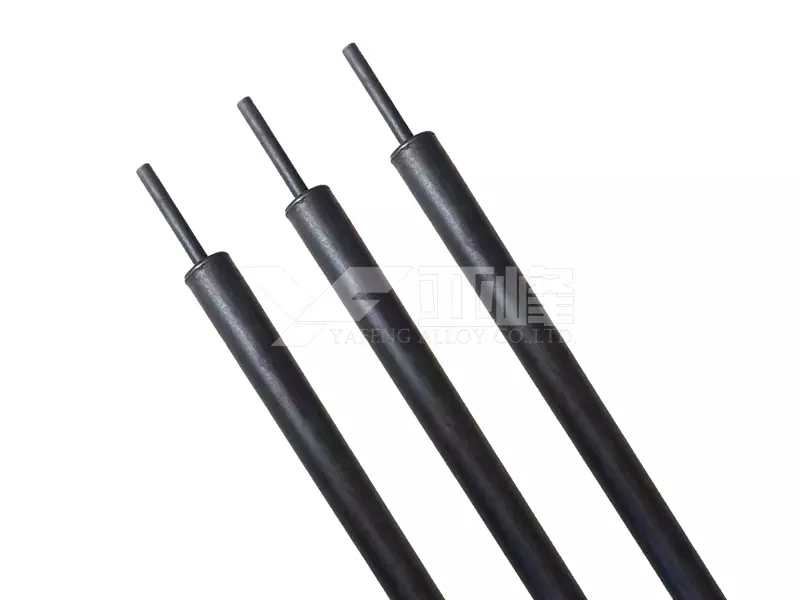

Tubular precious metal oxide anodes are custom-made to specification as auxiliary anodes for impressed current cathodic protection systems, incorporating strip precious metal oxide anodes and titanium.
Conductive strips are cross-welded to form anode grids, widely used for cathodic protection of new storage tank bottoms.
| Product Name |
Specifications/mm |
Flow Rate/A |
| MMO Tubular Anode |
Φ25 x 1000 |
8 |
| MMO Tubular Anode |
Φ25 x 700 |
5 |
| MMO Tubular Anode |
Φ50 x 800 |
12.5 |
| MMO Tubular Anode |
Φ50 x 1000 |
15 |
| Strip Specifications: Width: 6.35mm Thickness: 0.635mm Length: 76.2m/roll or 152.4m/roll |
