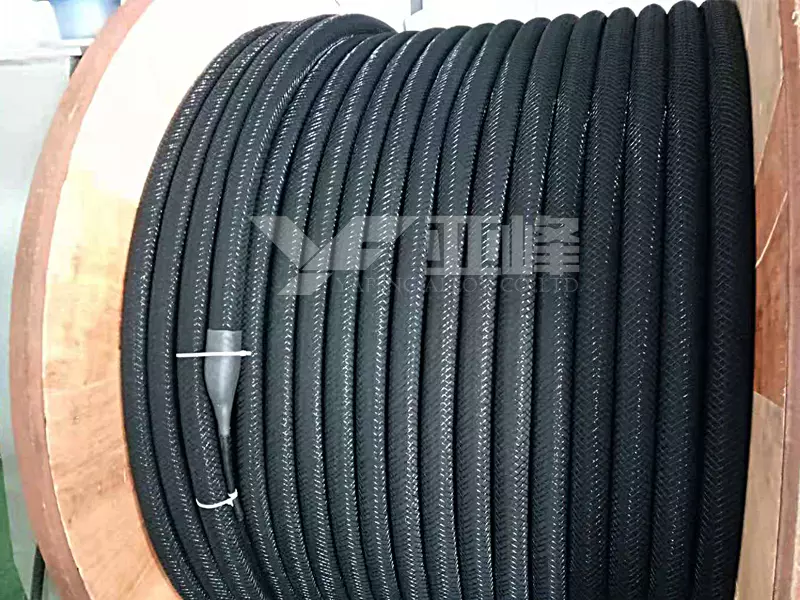

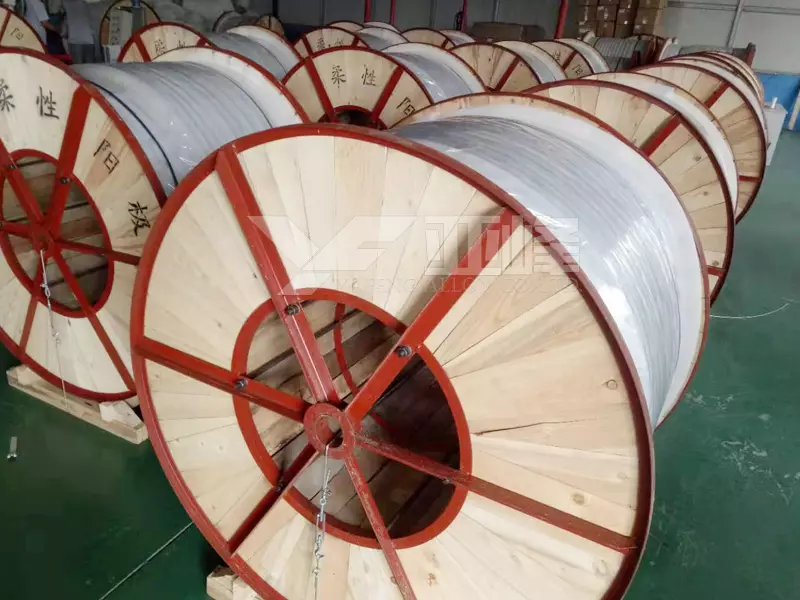

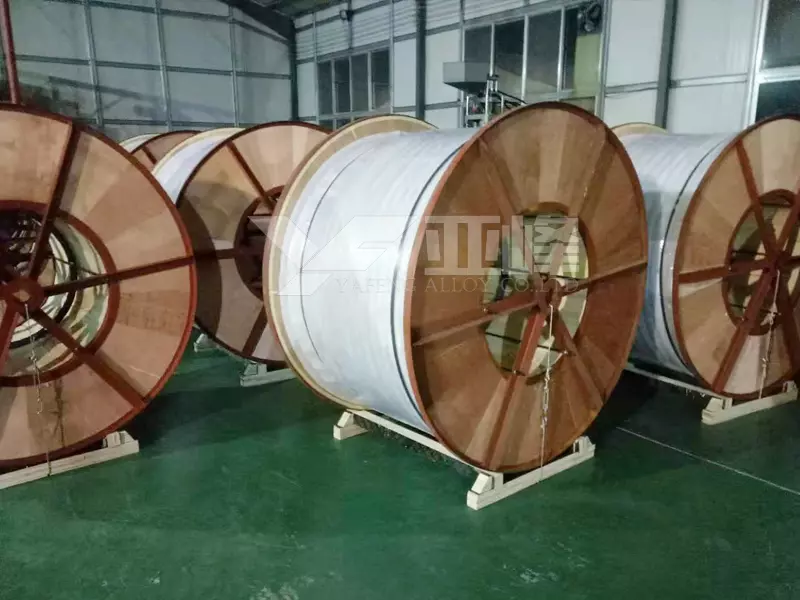

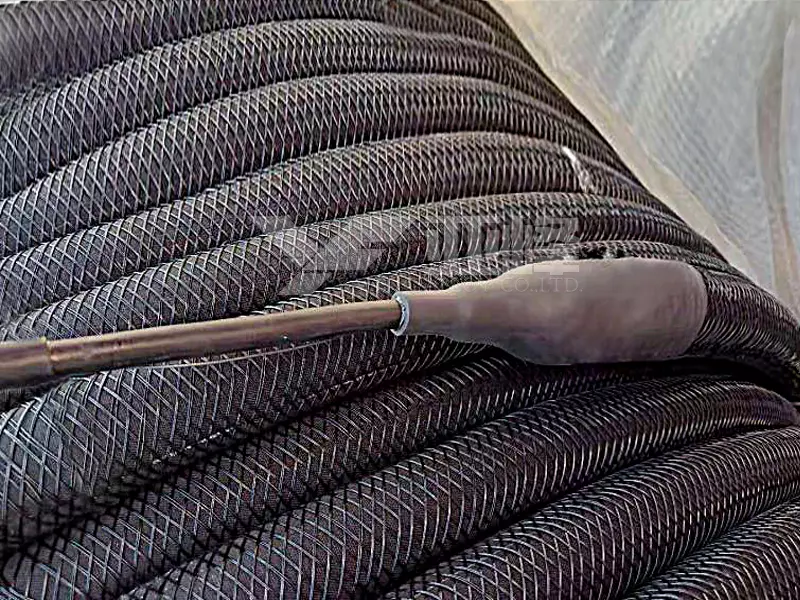

MMO/Flexible Anode
MMO/Flexible Anode
MMO/Flexible Anode
MMO/Flexible Anode
MMO/Flexible Anode

MMO/Flexible Anode

Brand: Yafeng
MOQ: 20 Pieces
Delivery time: 7 Day
Low consumption rate, allowing high current density;
Low ground resistance, stable potential, high utilization rate.
Contact Us Inquiry
Facebook
Instagram
Linkedin
Whatsapp
Email

Product Details

Buried oil and gas pipelines, the outer walls of large crude oil storage tank bases, and situations where traditional distributed anodes cannot provide effective protection—particularly for pipelines with severely aged or damaged anti-corrosion coatings—are ideally suited for this application.



Product classification





1. MMO/Ti Flexible Anode;

2. Conductive Polymer Flexible Anode.



Specification and model





Project Specifications
Flexible Anode Diameter 39 ± 2 mm
Average Thickness of Conductive Polymer >4.0 mm
Conductive Polymer Anode Core Diameter >13.0 mm
Volume Resistivity of Conductive Polymer 1.1 Q·cm to 1.9 Q·cm
Electrolysis at 50 Times the Current Required
 for Normal Operation in 1 mol/L Sulfuric Acid Solution		 >10 days
Output Current 52 mA/m
Anode Design Life >25 years
Carbon Content of Filled Coke Powder >98.0%
Resistivity of Carbon Powder <0.05 Q·m
Anode Fabric Covering Layer Fabric weight >150 g/m²,
abrasion resistance >100 cycles,
burst strength >500 N. Acid/alkali resistance,
chlorine resistance: permeable
Outer Woven Mesh Abrasion resistance, environmental temperature tolerance
Anode Weight >1.4 kg/m
